MK3/4 Escort hub Modification

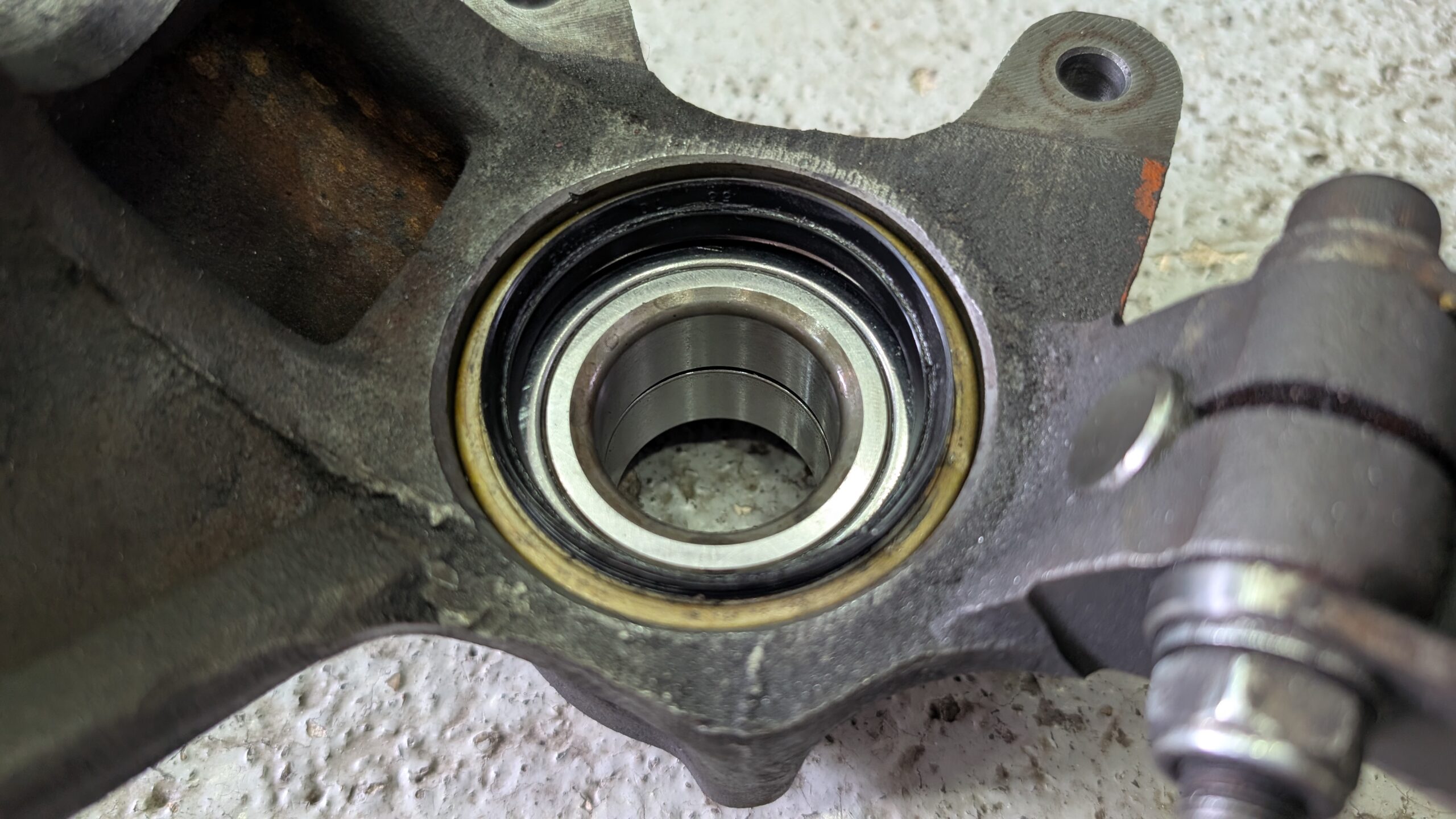

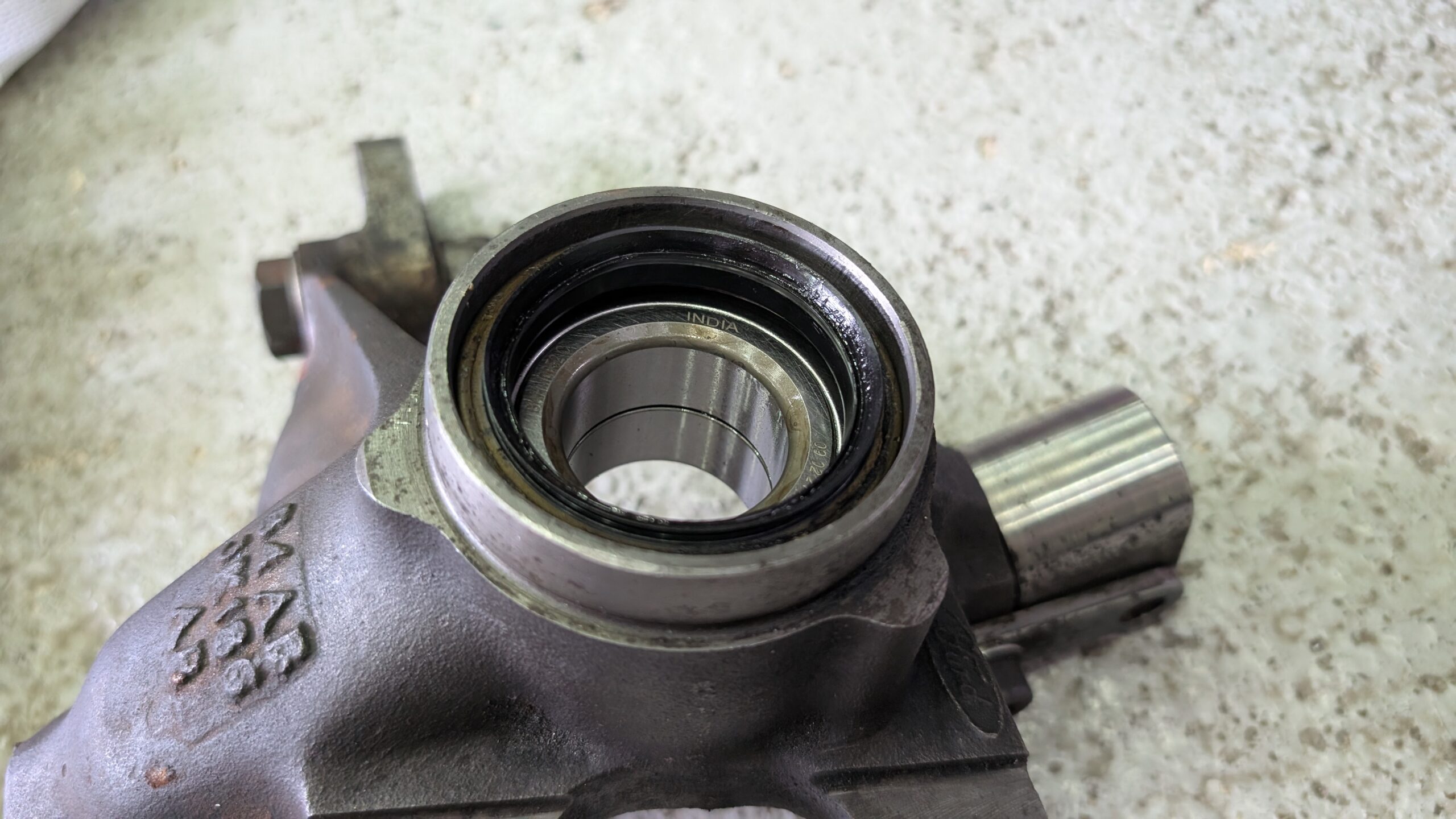

This conversion will transfer the hub from 2 separate roller taper bearings to a 1 piece integrated bearing.
There has been alot of bearing failures
over the past few years on all the MK3/4 escort range and it is
affecting normal road cars,higher powered road cars along with track/race cars
Track orientated cars can have a failure within 2 race meetings .
We have been using this mod on track orientated cars so far to make sure the conversion meets our needs.
There are a few issues that cause the failure with the wheel bearings on the original set up and it doesnt help using larger wheels with more force on the bearings.
We will not be offering a warranty on this conversion as we have to rely on 40 year old hubs,the only part that we will guarantee will be the machining
We will be offering this conversion as either us machining your hubs or on an exchange with a pair of hubs we have here.
For us to machine your hubs there will be a lead time based on our current workload at the time as we need everything inside the machine clean before we machine them as it is a dirty process for machining/keeping all our waste metal seperate.
There will also be a lead time for us to get the shot peening of the hubs done as that is an external process
These will come back to you with the bearing fitted so you only have to bolt them back on
Either we can supply these or you could source your own ones
The ultimate will be billet hubs but this will not suit the majority,these are coming later in the year
We are using this conversion on our own track car
We have 3 pairs of hubs that we are using for an exchange purpose,these will come in and out of stock based on when we get the exchanged hubs back
These hubs will come with:-

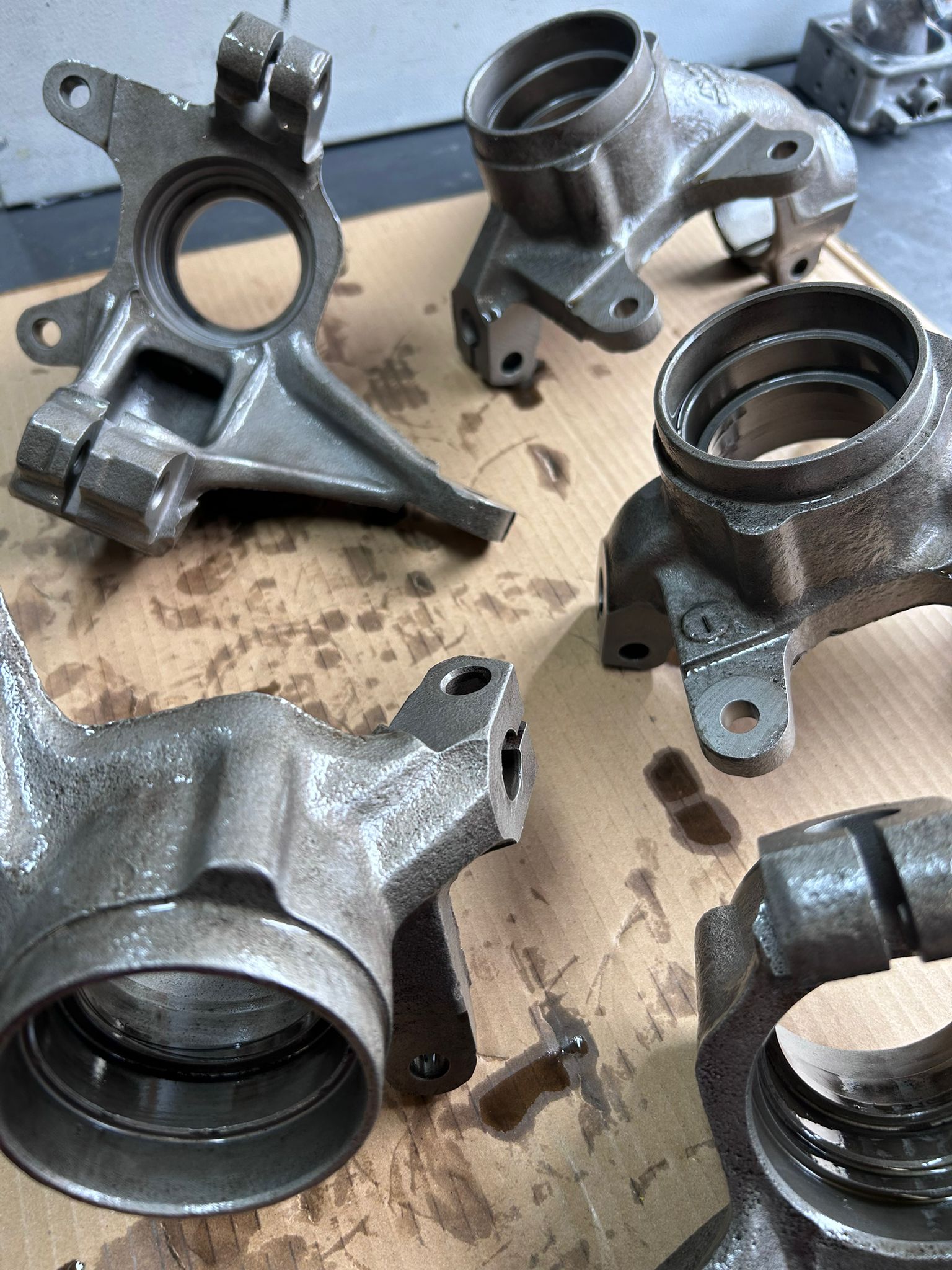

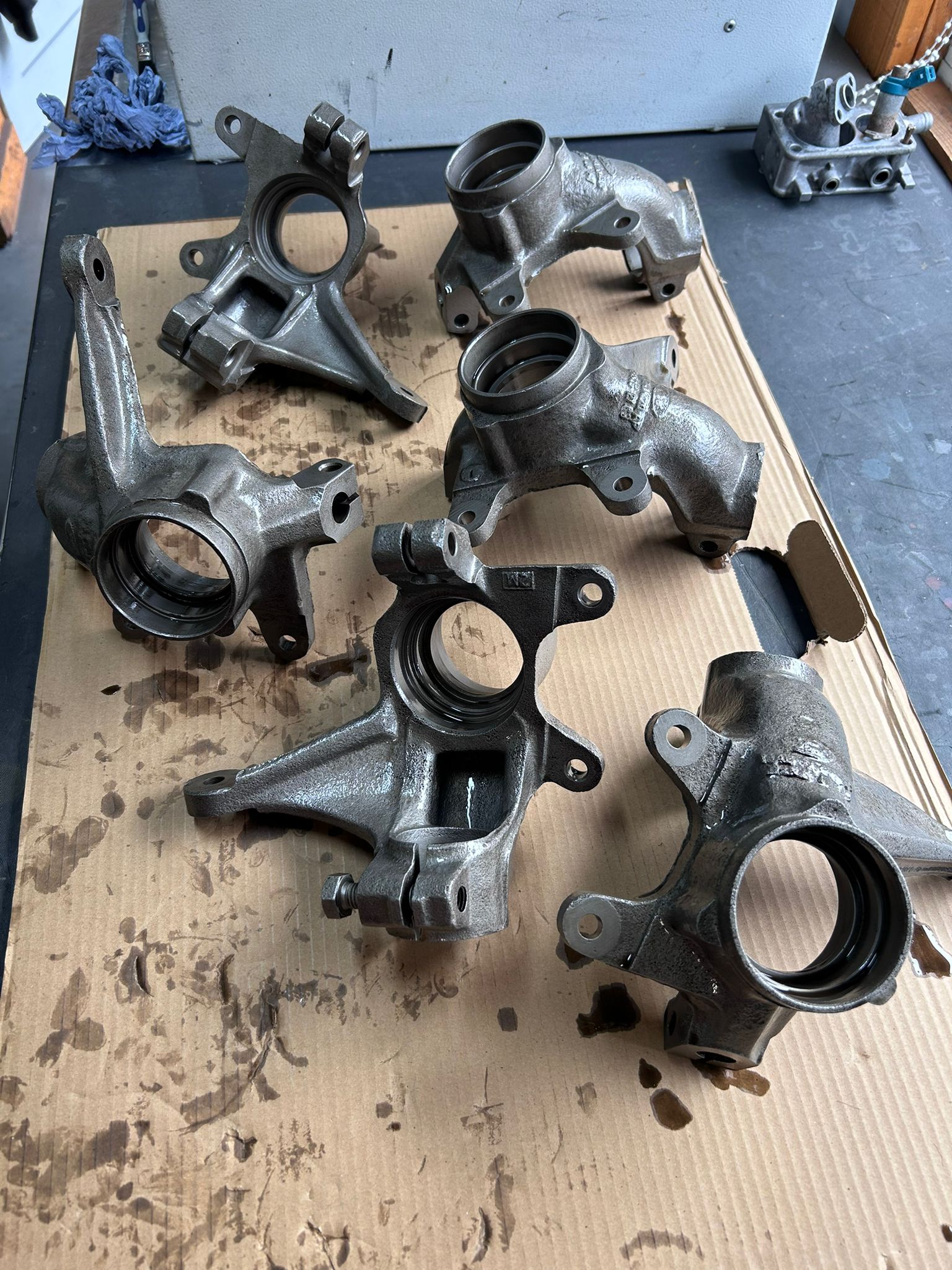

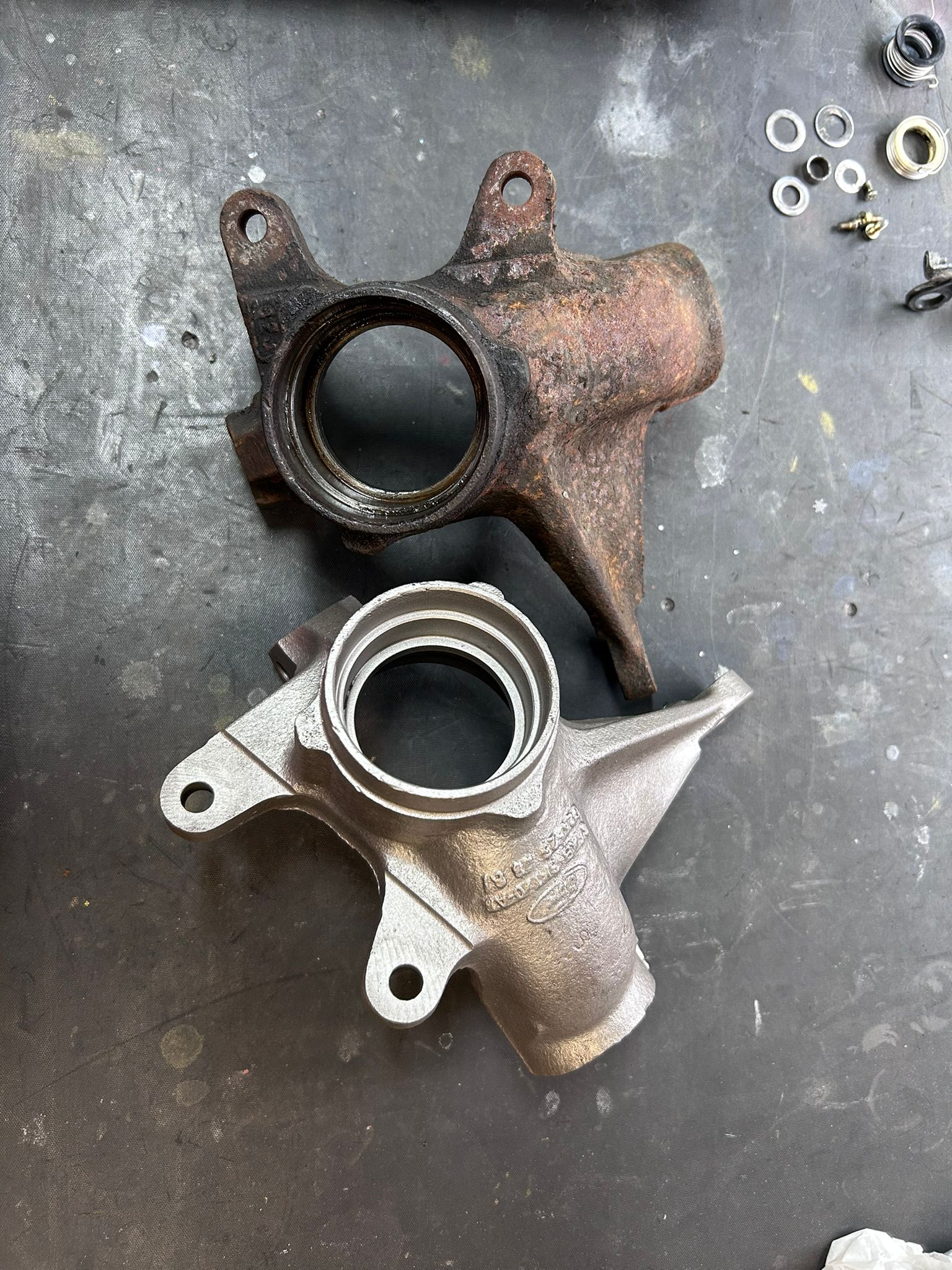

Shot peened hubs
Machined hubs to suit the new bearings
Bearings fitted
Seals front and back
Driveshaft retaining nut
Return postage
